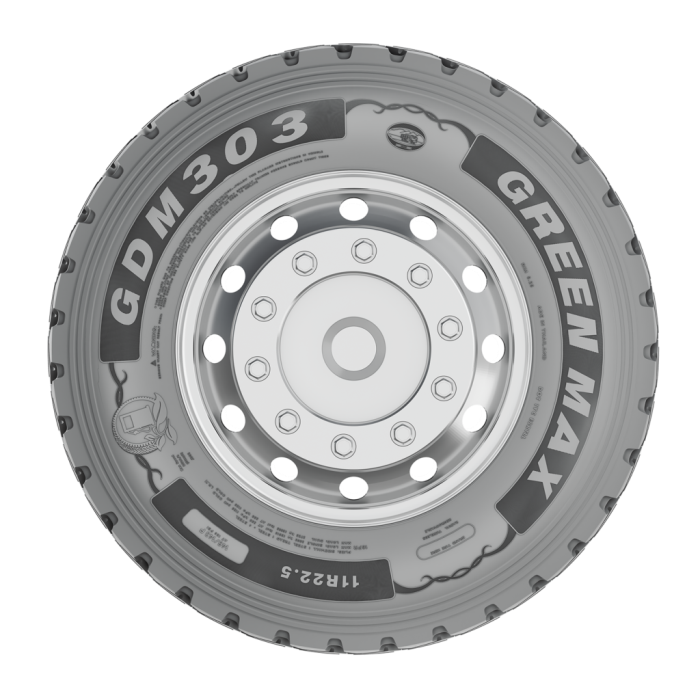

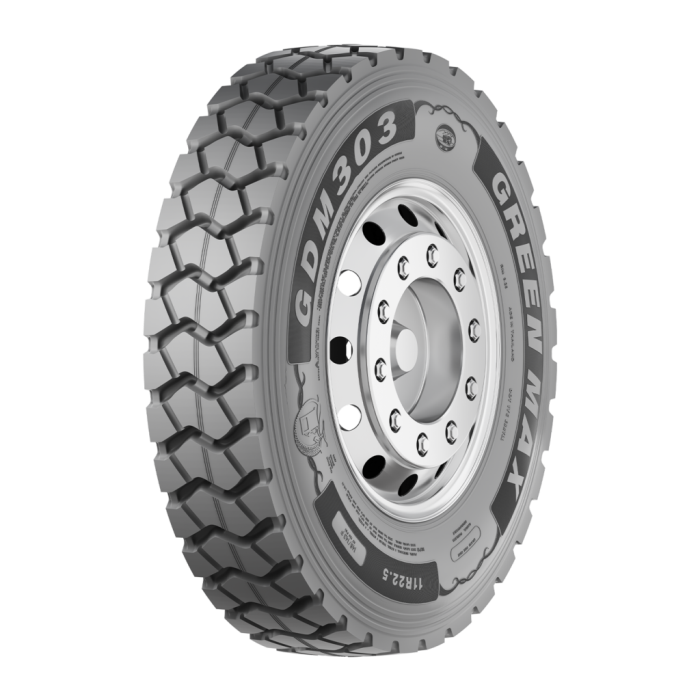

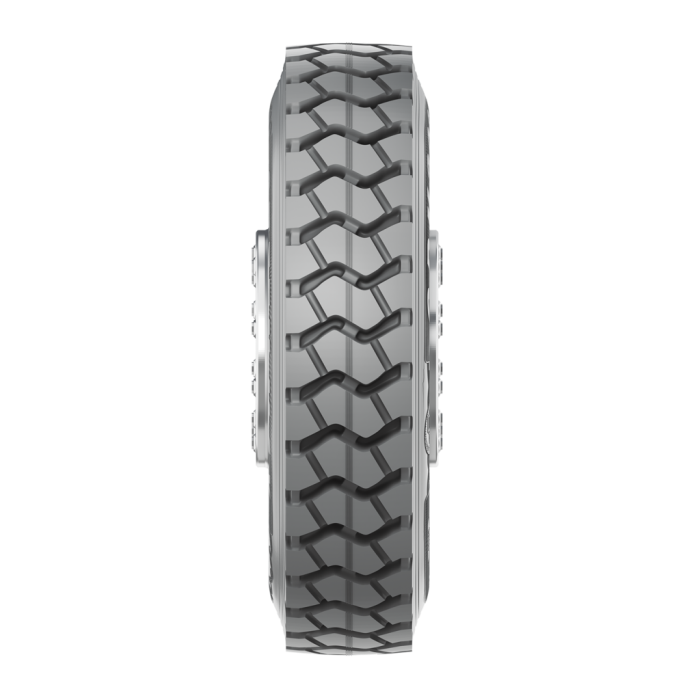

GDM303
Mining Drive Tire
Features
Warranties| Size | Load Index / Speed Symbol | Load Range | Ply | Standard Rim | Application | Operating Segment | Max. Load | Max. Inflation | Overall Diameter | Tread Depth |
|---|---|---|---|---|---|---|---|---|---|---|
| (lbs) | (psi) | (Inches) | (32 nds) | |||||||
| 11R22.5 | 146/143F | H | 16 | Off Road | Drive | 6610/6005 | 120 | 42 | 30 | |
| 12R22.5 | 152/149F | J | 18 | Off Road | Drive | 7825/7160 | 135 | 43 | 30 | |
| 12R22.5 | 150/147F | J | 16 | Off Road | Drive | 7390/6780 | 120 | 43 | 30 | |
| 11R24.5 | 149/146F | H | 16 | Off Road | Drive | 7160/6610 | 120 | 44 | 30 |
