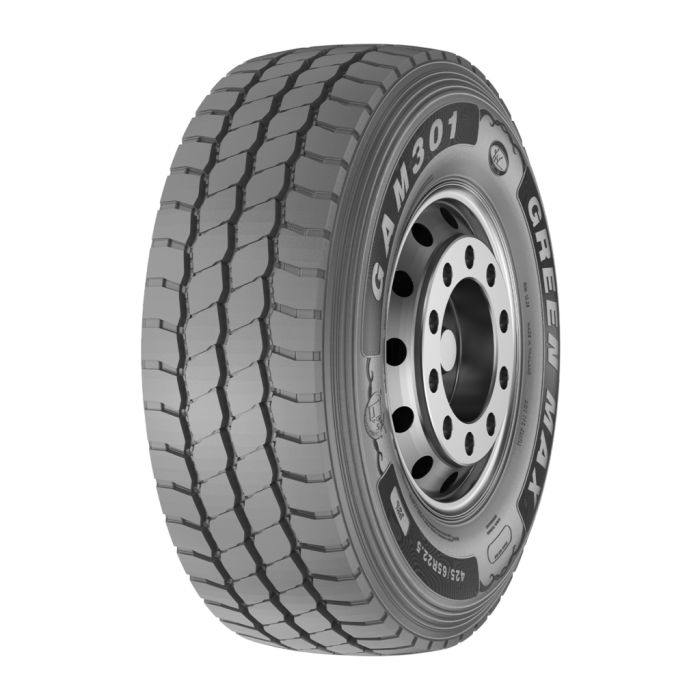

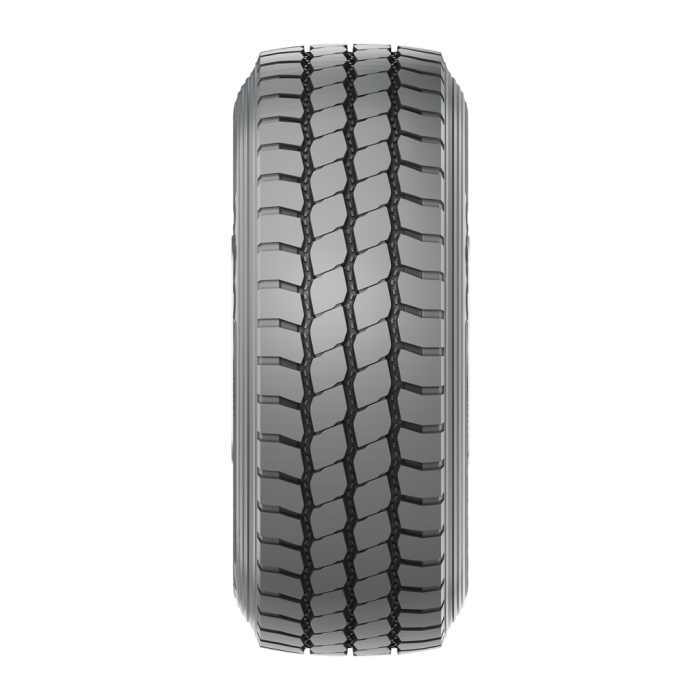

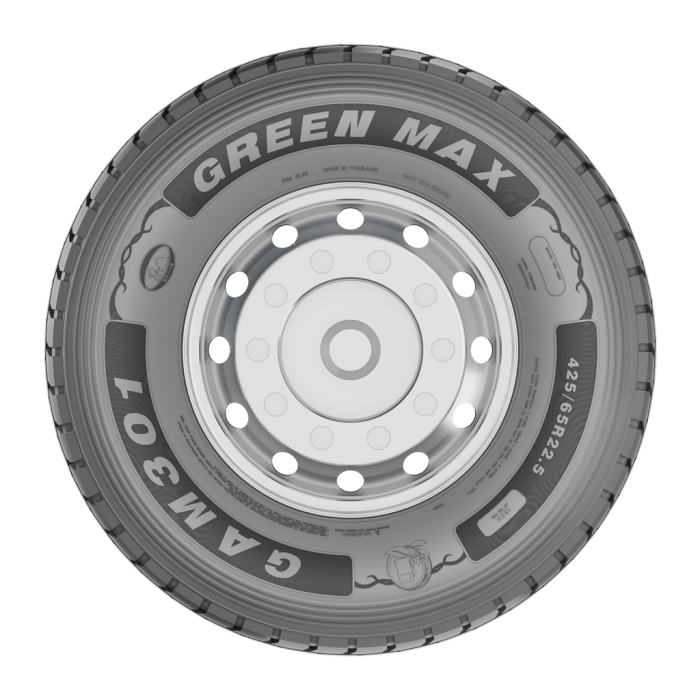

GAM301
Mixed Service Wide Base
Size Load Index / Speed Symbol Load Range Ply Standard Rim Application Operating Segment Max. Load Max. Inflation Overall Diameter Tread Depth
(lbs) (psi) (Inches) (32 nds)
385/65R22.5 158L J 18   Mixed Service All Position 9,370 120 42 23
385/65R22.5 160K L 20   Mixed Service All Position 9,920 130 42 23
425/65R22.5 165K L 20   Mixed Service All Position 11,400 120 44 23
445/65R22.5 169J M 22   Mixed Service All Position 12,800 130 45 23
445/65R22.5 168K L 20   Mixed Service All Position 12,300 120 45 23
