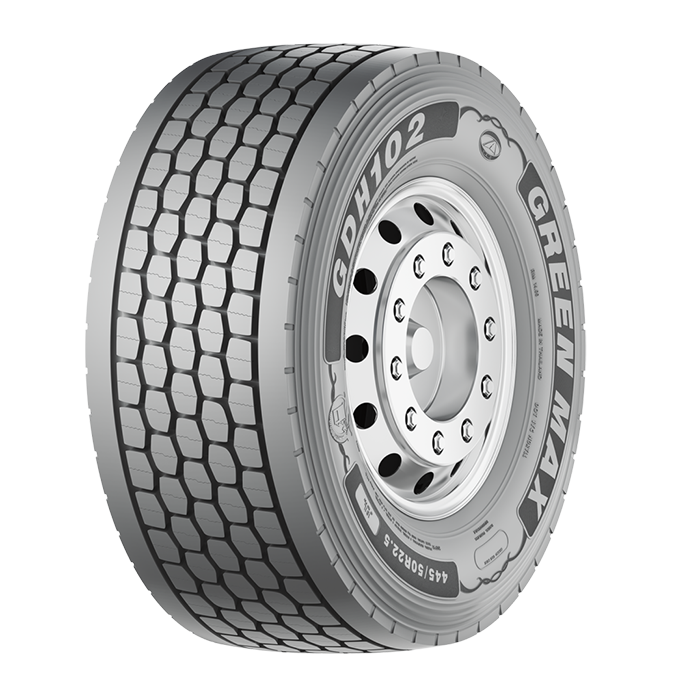

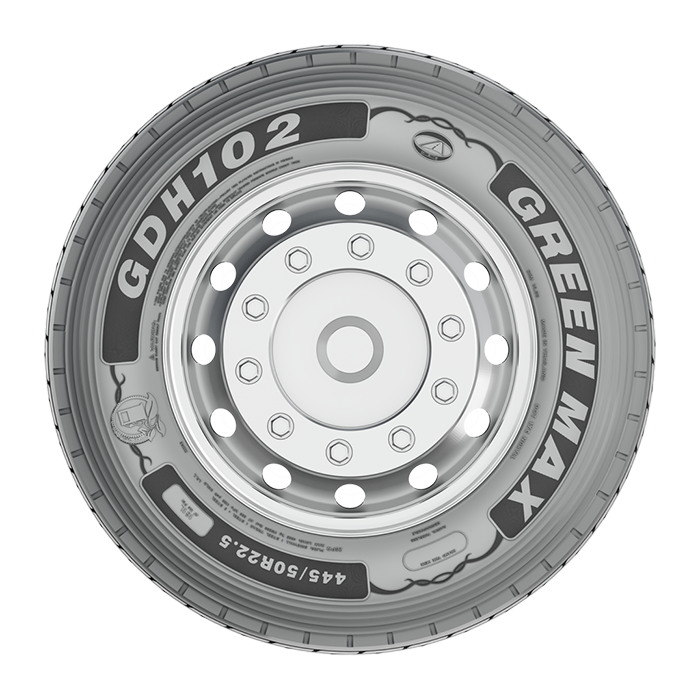

GDH102
DRIVE POSITION

• Closed shoulder design to ensure even weight and torque distribution, prevent irregular wear, and achieve prolonged tread life and uniform wear

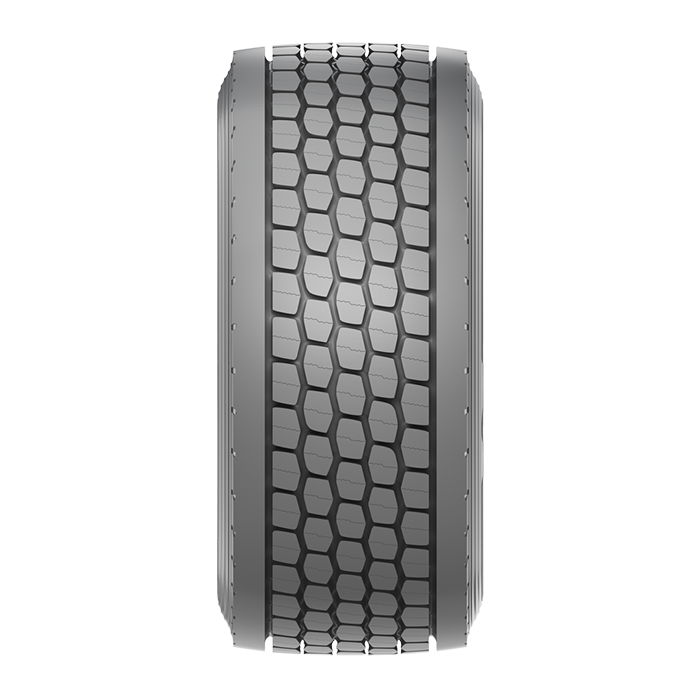

• Six-groove tread pattern with high stiffness for longer mileage, even wear and low rolling resistance


• 3D interlocking sipe design for higher tread stiffness


• Robust casing material for improved durability and retreadability



Specifications



Puresize

Load Index / Speed Symbols PR Load Range Rim Max Load and Mix Air (lbs&psi) Overall Diameter in inches Section Width in inches Revolutions per mile Tread Depth (in 32nds)
Dual Single
lbs psi lbs psi
445/50R22.5  161L 20 L 14.00 - - 10200 120 40.09 17.52 522 23
